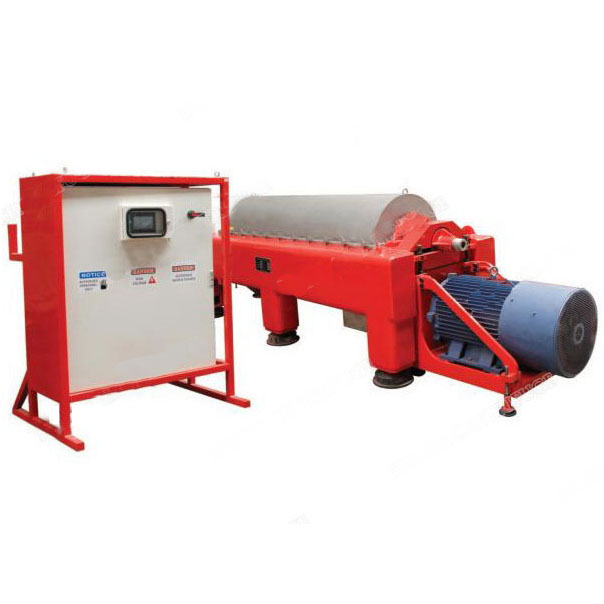

LW drilling mud decanter centrifuges are ruggedly engineered to practically remove solid wastes and fine particles contained in drilling mud. This horizontal separation equipment, as an oil drilling equipment, is the time-verified drilling mud processing solution to process water/synthetic based drilling fluids as well as traditional oil-based drilling mud.
Structure Diagram
Workflow
Technical Parameter of LW Drilling Mud Decanter Centrifuges
| Model | Bowl Dia. (mm) | L/D Ratio | Max. Speed (r/min) | G-Force | Main Motor Power (kW) | Weight (kg) | Dimension (L×W×H) (mm) |
| LW220×880 | 220 | 4 | 4800 | 2840 | 11 | 1000 | 2234×740×781 |
| LWZ355×1460 | 350 | 4 | 4000 | 3132 | 30 | 2800 | 3365×920×1060 |
| LW450×1800 | 450 | 4 | 3500 | 3083 | 45 | 3600 | 4200×1090×1250 |
| LW530×2120 | 530 | 4 | 3200 | 3035 | 75 | 4200 | 4885×1230×1350 |
| LW630×2300 | 630 | 3.7 | 2500 | 2205 | 90 | 8000 | 5110×1440×1750 |
| LW720×2665 | 720 | 3.7 | 2000 | 1600 | 110 | 12000 | 5365×3160×1510 |
| LW1000×3000 | 1000 | 3 | 1500 | 1258 | 132 | 16000 | 5180×2450×1950 |
